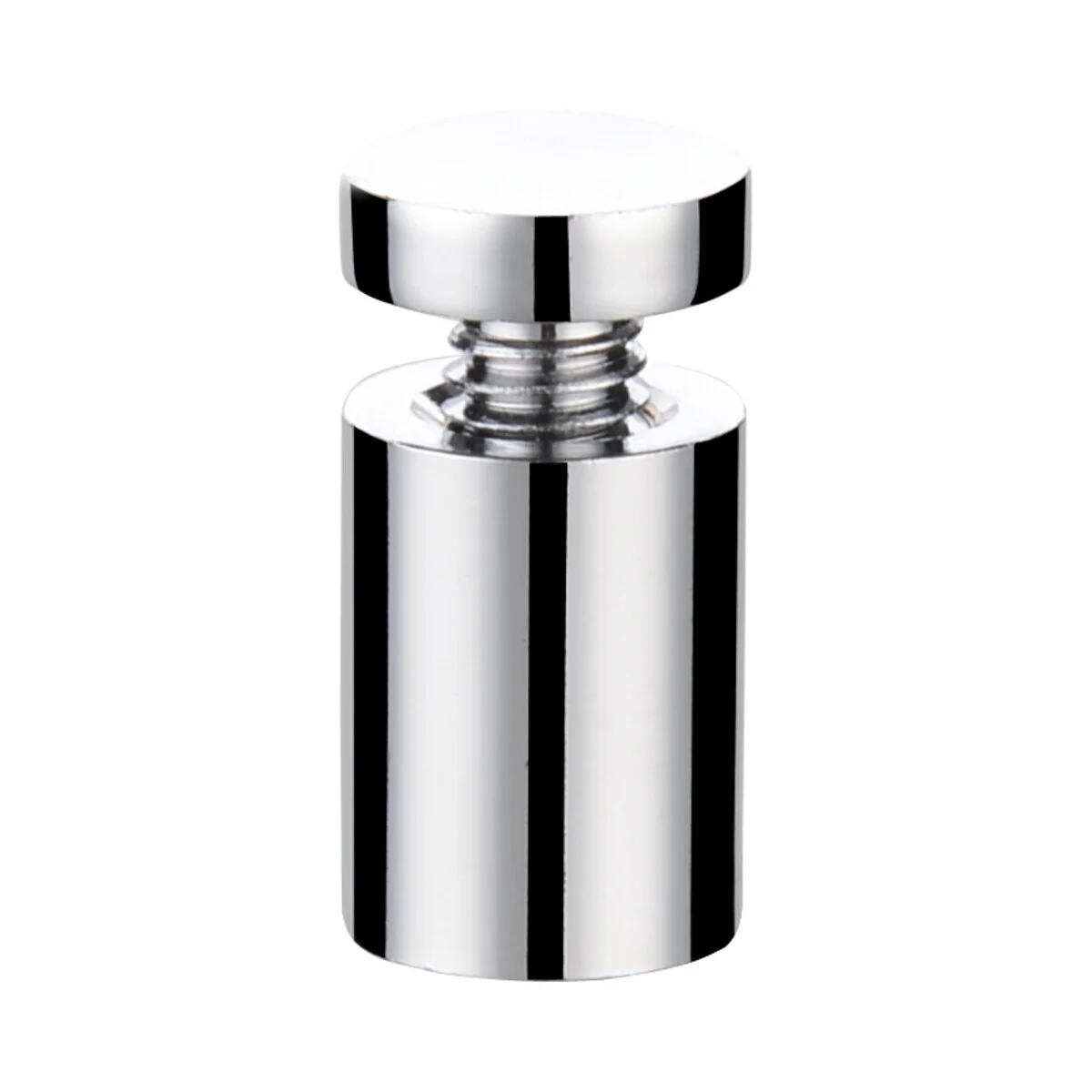

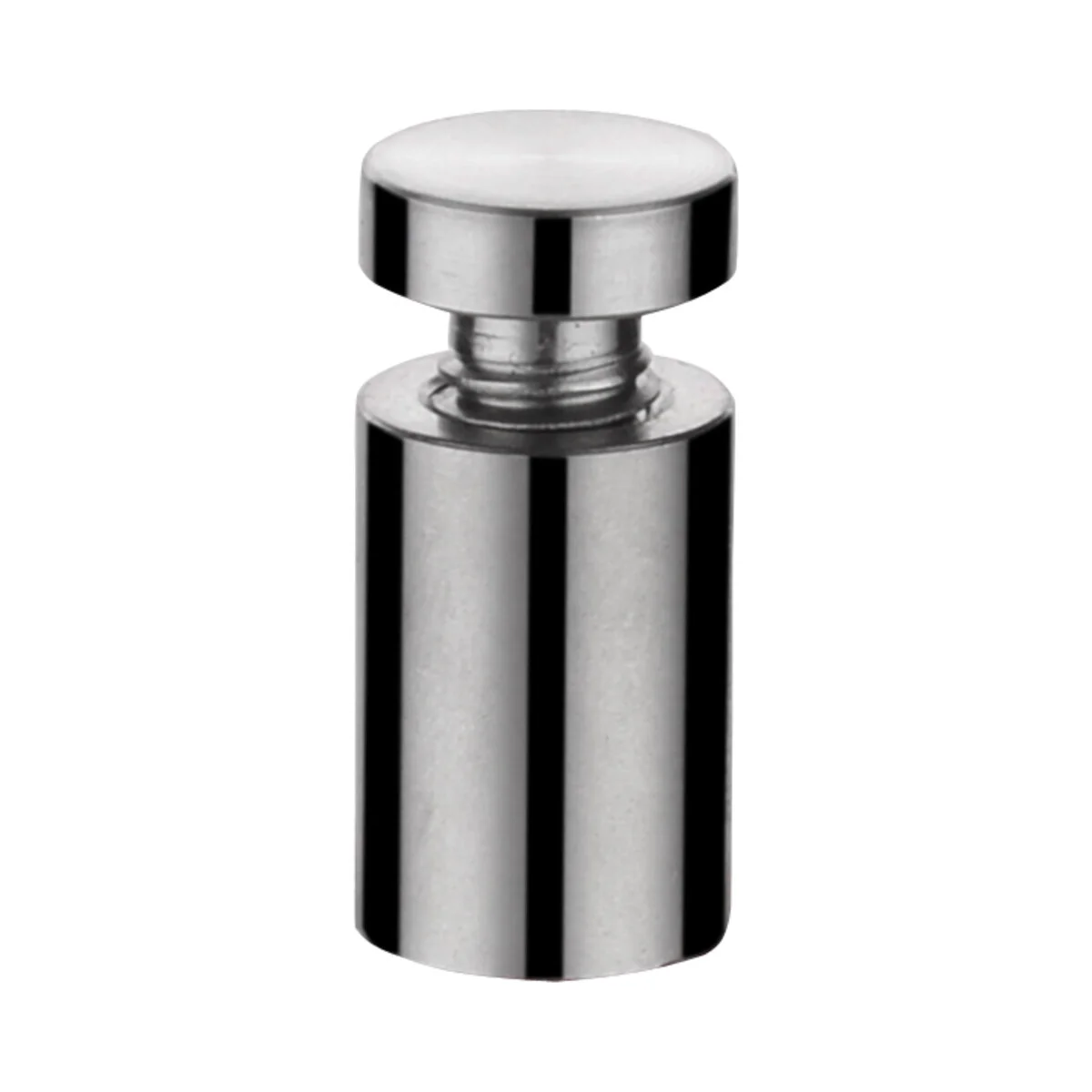

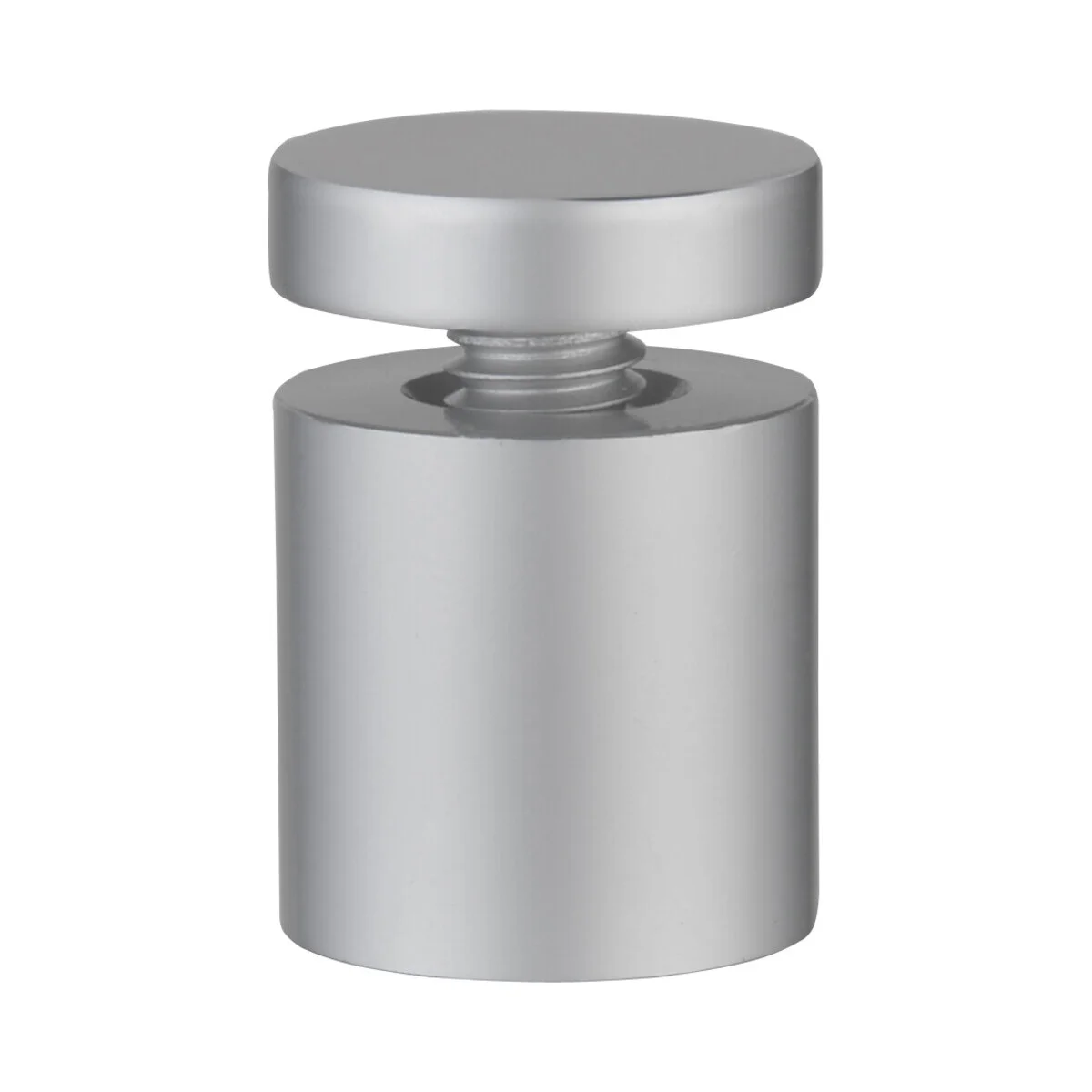

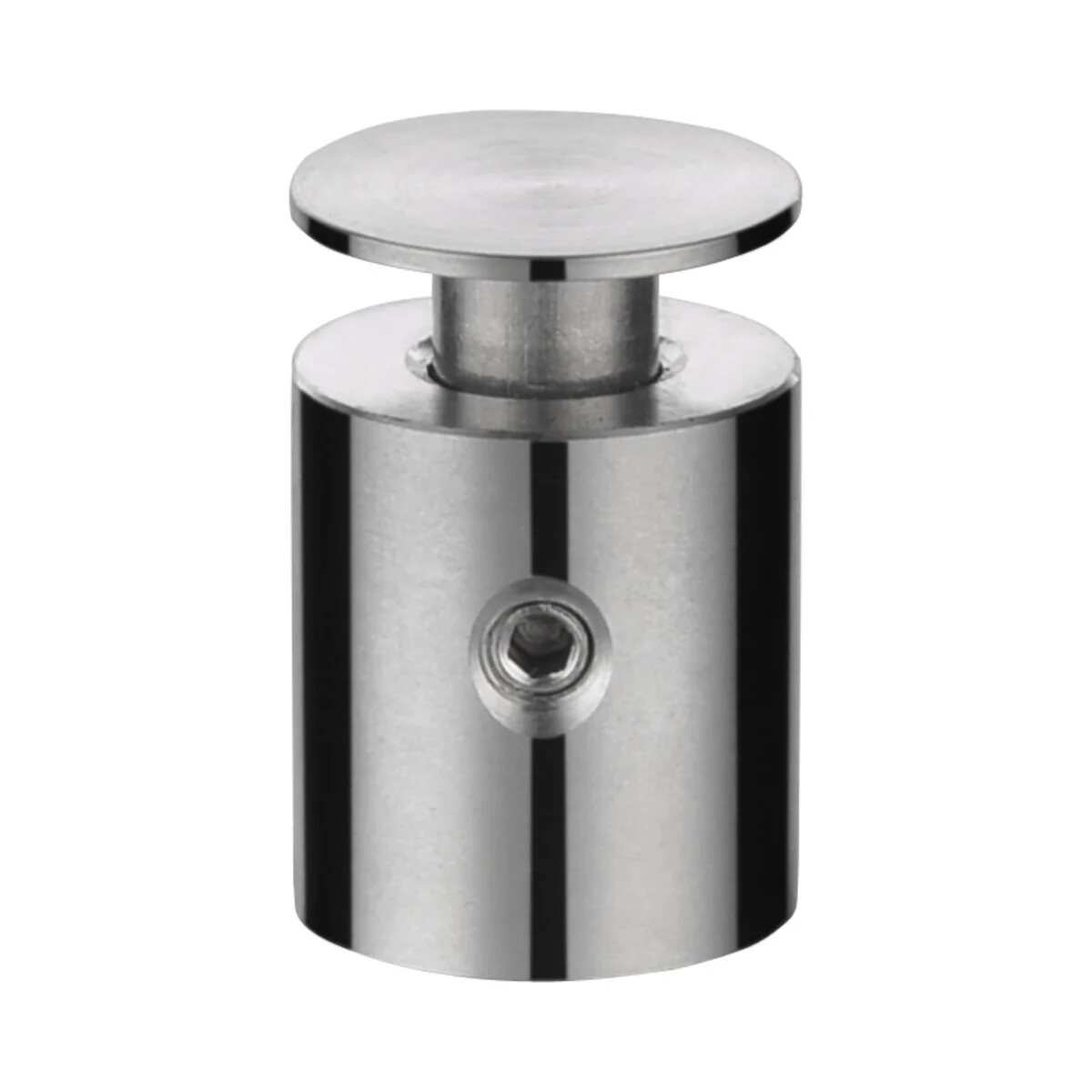

Classic flat head design for a clean, flush appearance on glass, acrylic, and composite signage panels. Available in CA (aluminum), CN (brass), and SS (stainless steel) series across multiple diameter and spacer combinations.
Available Finishes
Available Colors
| Model | Diameter | Cap Thickness | Spacer | Screw Pole Size | Bottom Hole Size | Max Panel Thickness | Finishes |
|---|---|---|---|---|---|---|---|
| CA-1313 | 13 mm | 4 mm | 13 mm | Dia. 8mm L12mm | 4.2 mm | 6 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1319 | 13 mm | 4 mm | 19 mm | Dia. 8mm L16.5mm | 4.2 mm | 8 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1325 | 13 mm | 4 mm | 25 mm | Dia. 8mm L22.5mm | 4.2 mm | 12 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1520 | 15 mm | 4 mm | 20 mm | Dia. 8mm L17.5mm | 4.2 mm | 8 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1525 | 15 mm | 4 mm | 25 mm | Dia. 8mm L22.5mm | 4.2 mm | 12 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1919 | 19 mm | 6 mm | 19 mm | Dia. 10mm L16.5mm | 5 mm | 8 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-1925 | 19 mm | 6 mm | 25 mm | Dia. 10mm L22.5mm | 5 mm | 12 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-2519 | 25 mm | 6 mm | 19 mm | Dia. 10mm L16.5mm | 5 mm | 8 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
| CA-2525 | 25 mm | 6 mm | 25 mm | Dia. 10mm L22.5mm | 5 mm | 12 mm | CP, SS, GL, ST, BK, BL, GU, WT, RD, GR, YE |
Custom sizes and finishes available upon request. Contact us for technical drawings.
CA aluminum series ships in Polished Chrome, Satin Silver, Glossy, Satin, Black, Blue, Gun Grey, White, Red, Grass Green, and Yellow anodized finishes.
Aluminum CA series, solid brass CN series, and stainless steel 304 SS series — all produced in-house from certified raw material billets.
Standard barrels from 13mm to 50mm. Custom lengths manufactured on request for non-standard panel stack-ups.

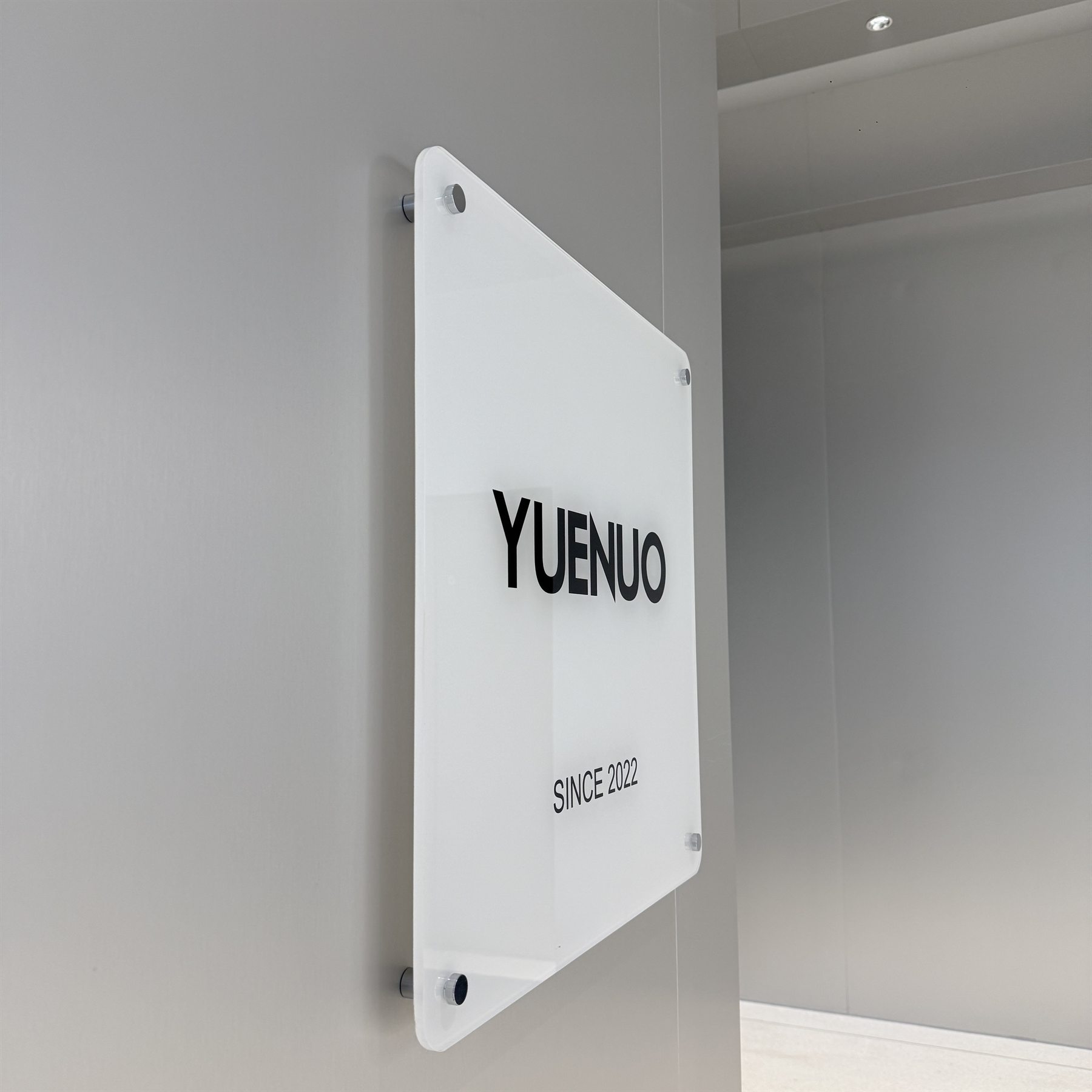

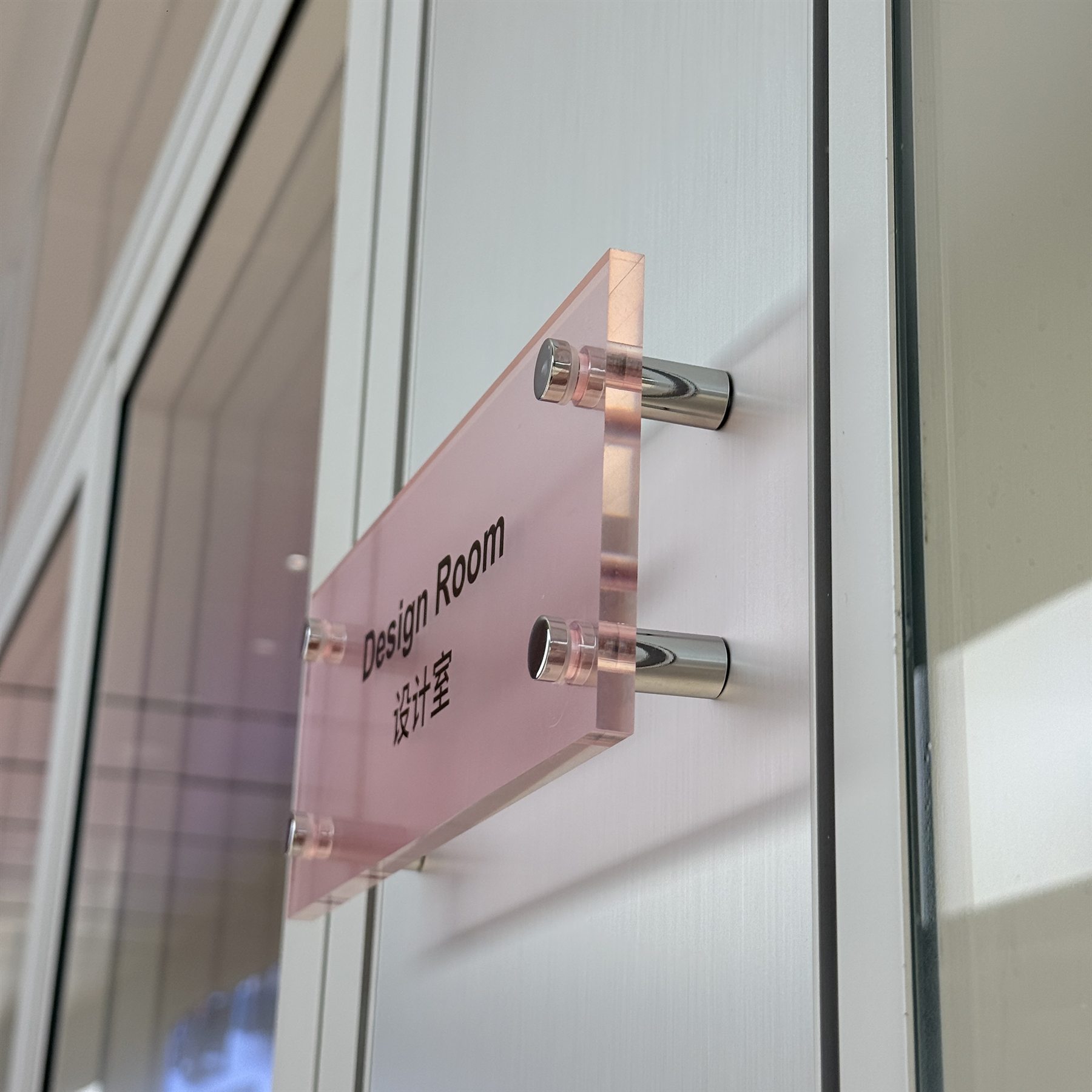

Flat Top Standoffs are specified for Building directory boards, Lobby identification signage, Retail point-of-sale displays, Wayfinding systems. UNIFITTING supplies them to distributors, sign manufacturers, installers, and commercial project buyers.
This range covers CA (Aluminum), CN (Brass), SS (Stainless Steel). Common finish codes include CP, SS, GL, ST, BK, BL, GU, WT, and additional options. Custom OEM finishes are available for approved bulk orders.
Yes. UNIFITTING manufactures sign and display hardware in Ningbo and supports wholesale orders, distributor supply, custom dimensions, private-label packaging, and OEM production when MOQ requirements are met.
Send the target models, quantities, preferred material/finish, project country, and any drawings or panel thickness details. Catalog and installation PDF downloads are available on this page for technical review.
For signage manufacturers, hardware distributors, installers, and commercial buyers, selecting sign standoffs starts with the installation requirements. For Building directory boards, Lobby identification signage, Retail point-of-sale displays, Wayfinding systems, Glass partition panel mounting, Menu boards, ADA tactile signage mounting, Architectural feature walls, compare dimensions, material, finish and fixing method before choosing a model.
Include your model codes, quantities, destination country and required delivery date in your inquiry. For custom parts, include a drawing or sketch and identify the dimensions that must be maintained. Ask the sales team to confirm minimum quantities, sample availability, production time and freight terms for your order.
