Edge-grip hardware for thick glass and acrylic panels. C series (stainless) and CA-2519C aluminum side clamp series — available in ST, CP, BK, and YE finishes. Panel thickness range 5–8mm.
Available Finishes
Available Colors
| Model | Head Ø | Barrel L | Material | Finishes |
|---|---|---|---|---|

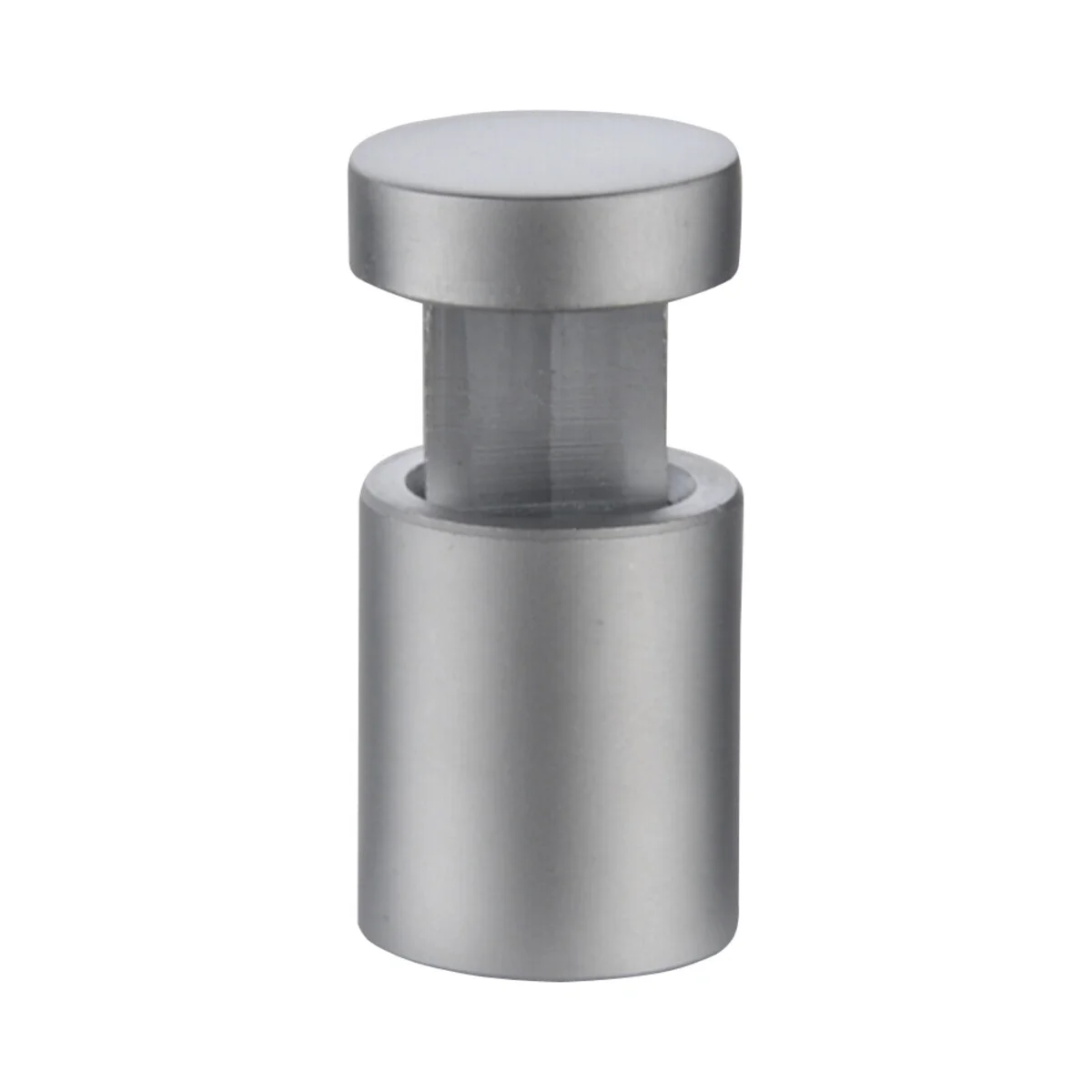

| C-1619A | 16 mm | 19 mm | Stainless Steel | ST, CP, BK, YE |

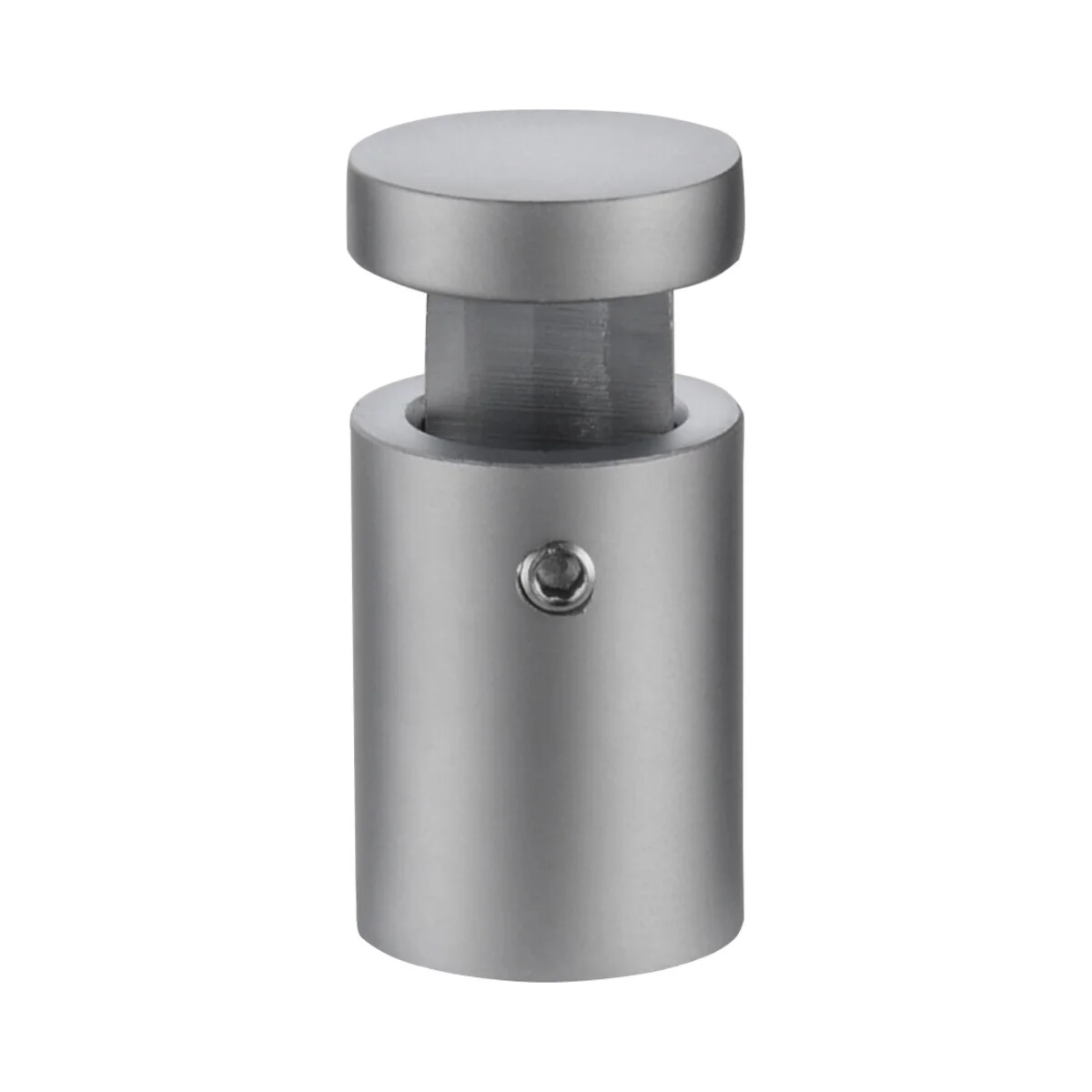

| C-1925A | 19 mm | 25 mm | Stainless Steel | ST, CP, BK, YE |
| C-2525 | 25 mm | 25 mm | Stainless Steel | ST, CP, BK, YE |

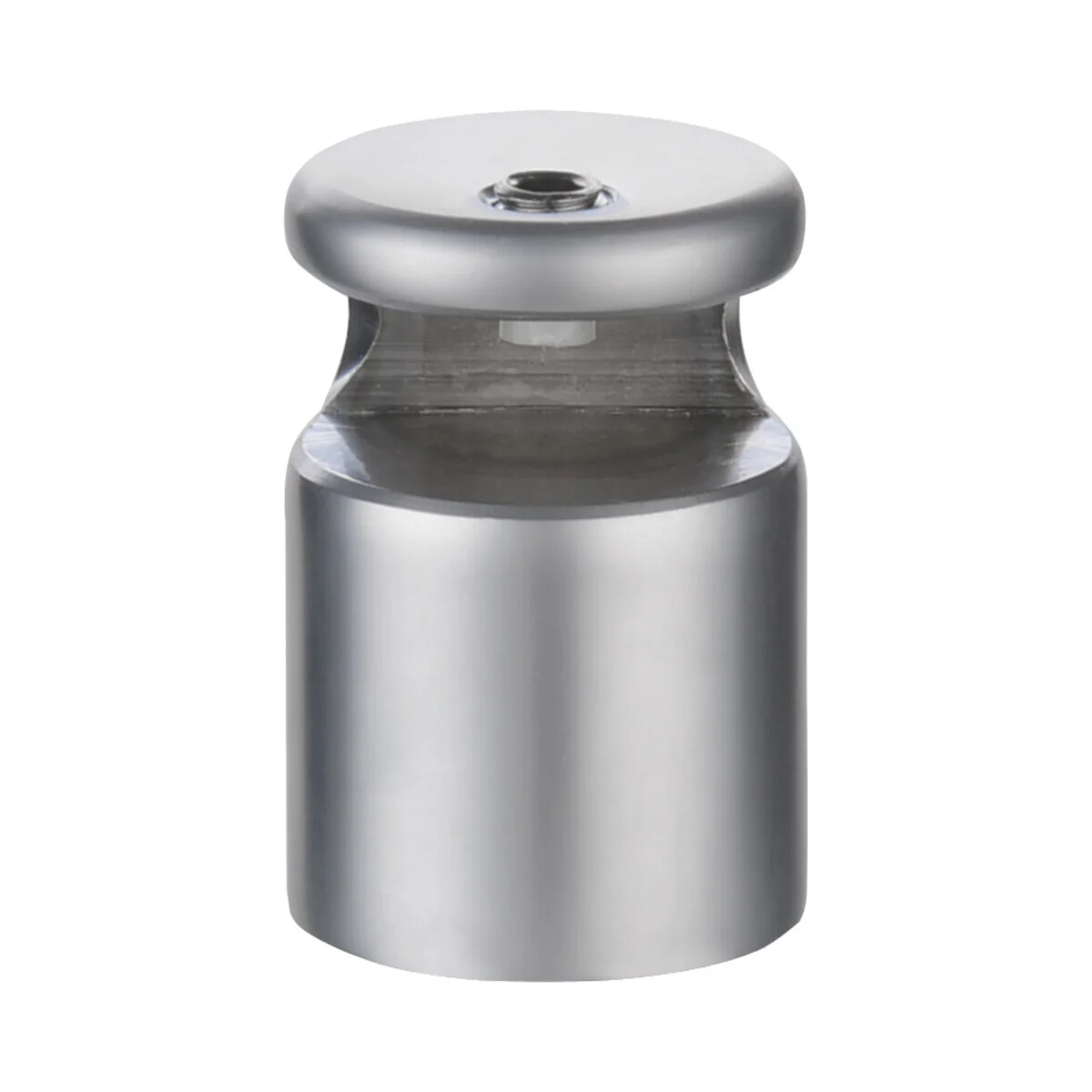

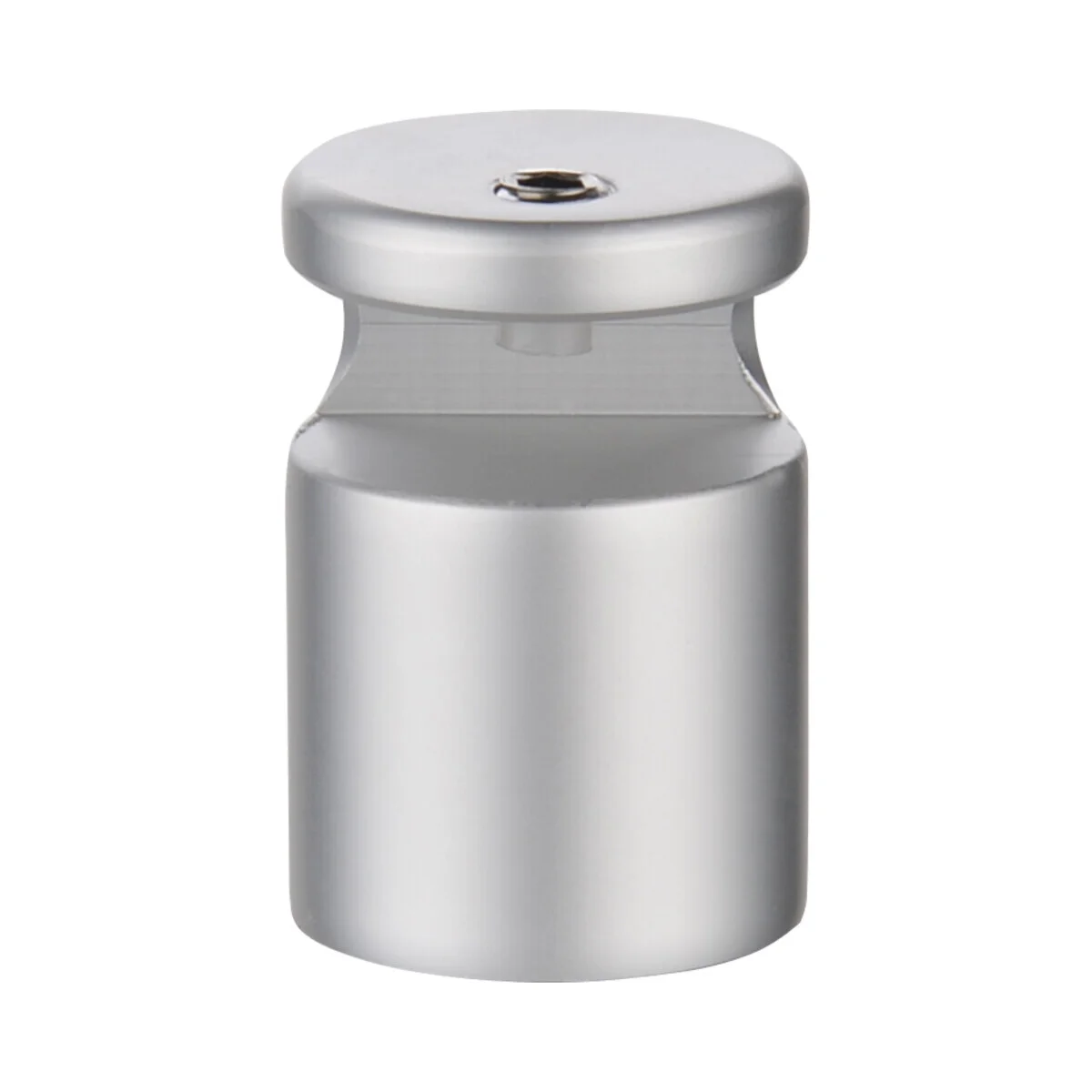

| C-2537 | 25 mm | 37 mm | Stainless Steel | ST, CP, BK, YE |
| C-2035 | 20 mm | 35 mm | Stainless Steel | ST, CP, BK, YE |
Custom sizes and finishes available upon request. Contact us for technical drawings.
Side-clamping mechanism grips the panel edge — no drilling through the panel face required for glass and acrylic installations.
Designed for panels from 5mm to 8mm thickness. The screw-adjustable jaw accommodates panel thickness variation within tolerance.
C stainless series in ST, CP, BK, YE. CA-2519C aluminum side clamps in ST and BK anodized finishes.
Side Clamp Standoffs are specified for Thick glass panel mounting, Acrylic sheet displays, Retail window graphics frames, Exhibition panel systems. UNIFITTING supplies them to distributors, sign manufacturers, installers, and commercial project buyers.
This range covers C (Stainless Steel), CA-2519C (Aluminum). Common finish codes include ST, CP, BK, YE. Custom OEM finishes are available for approved bulk orders.
Yes. UNIFITTING manufactures sign and display hardware in Ningbo and supports wholesale orders, distributor supply, custom dimensions, private-label packaging, and OEM production when MOQ requirements are met.
Send the target models, quantities, preferred material/finish, project country, and any drawings or panel thickness details. Catalog and installation PDF downloads are available on this page for technical review.
For signage manufacturers, hardware distributors, installers, and commercial buyers, selecting sign standoffs starts with the installation requirements. For Thick glass panel mounting, Acrylic sheet displays, Retail window graphics frames, Exhibition panel systems, Corporate glazing applications, compare dimensions, material, finish and fixing method before choosing a model.
Include your model codes, quantities, destination country and required delivery date in your inquiry. For custom parts, include a drawing or sketch and identify the dimensions that must be maintained. Ask the sales team to confirm minimum quantities, sample availability, production time and freight terms for your order.
